Quality Air Conditioner Replacement in Port St Lucie

Cooling Connection completed a split air conditioner system replacement in Port St. Lucie, FL, replacing a Ruud 4 ton split system. The project addressed both the outdoor and indoor components needed to make the new system efficient and reliable for the homeowner. Our team focused on refrigerant line protection, and condensate safety as part of the installation.

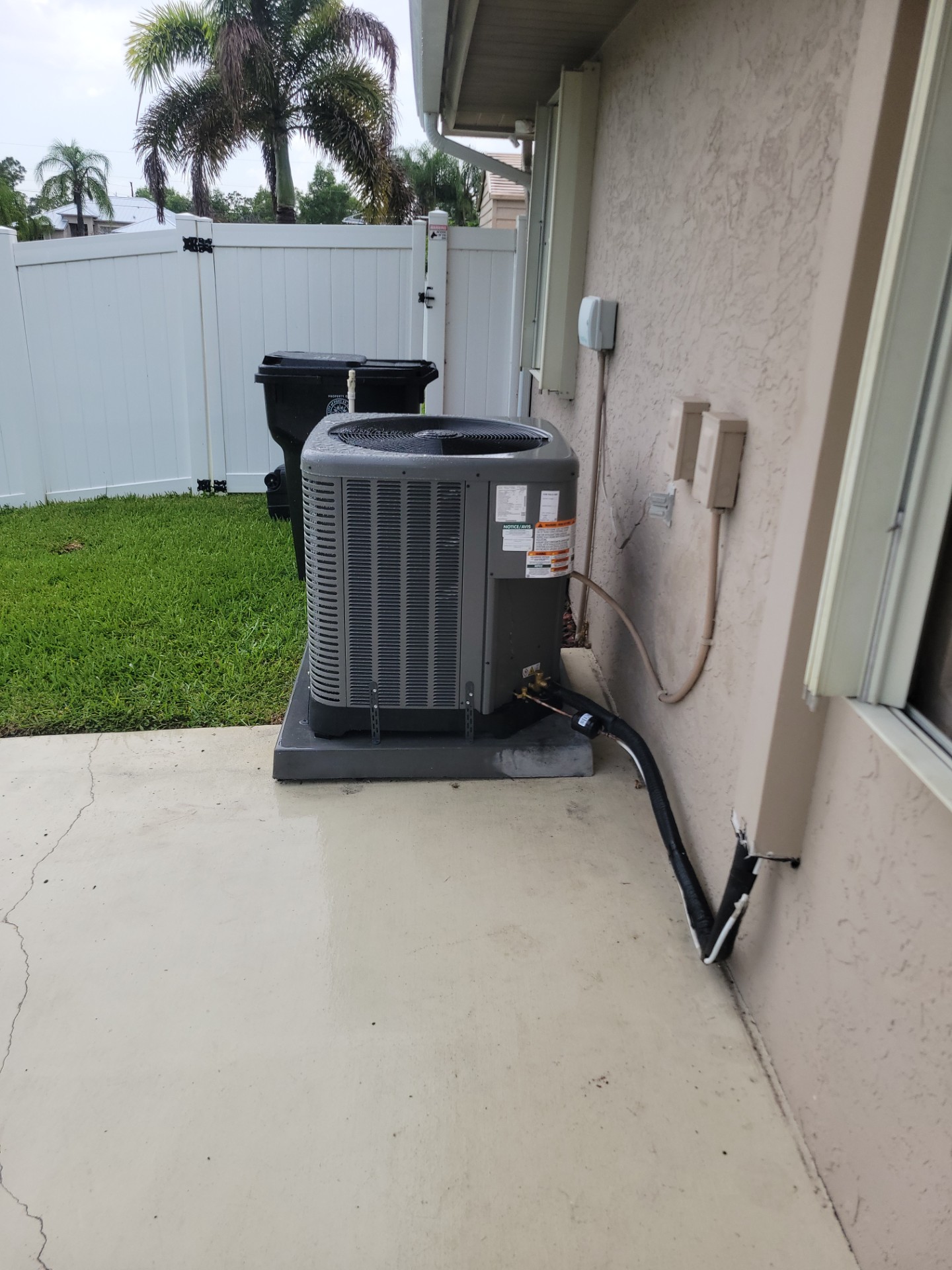

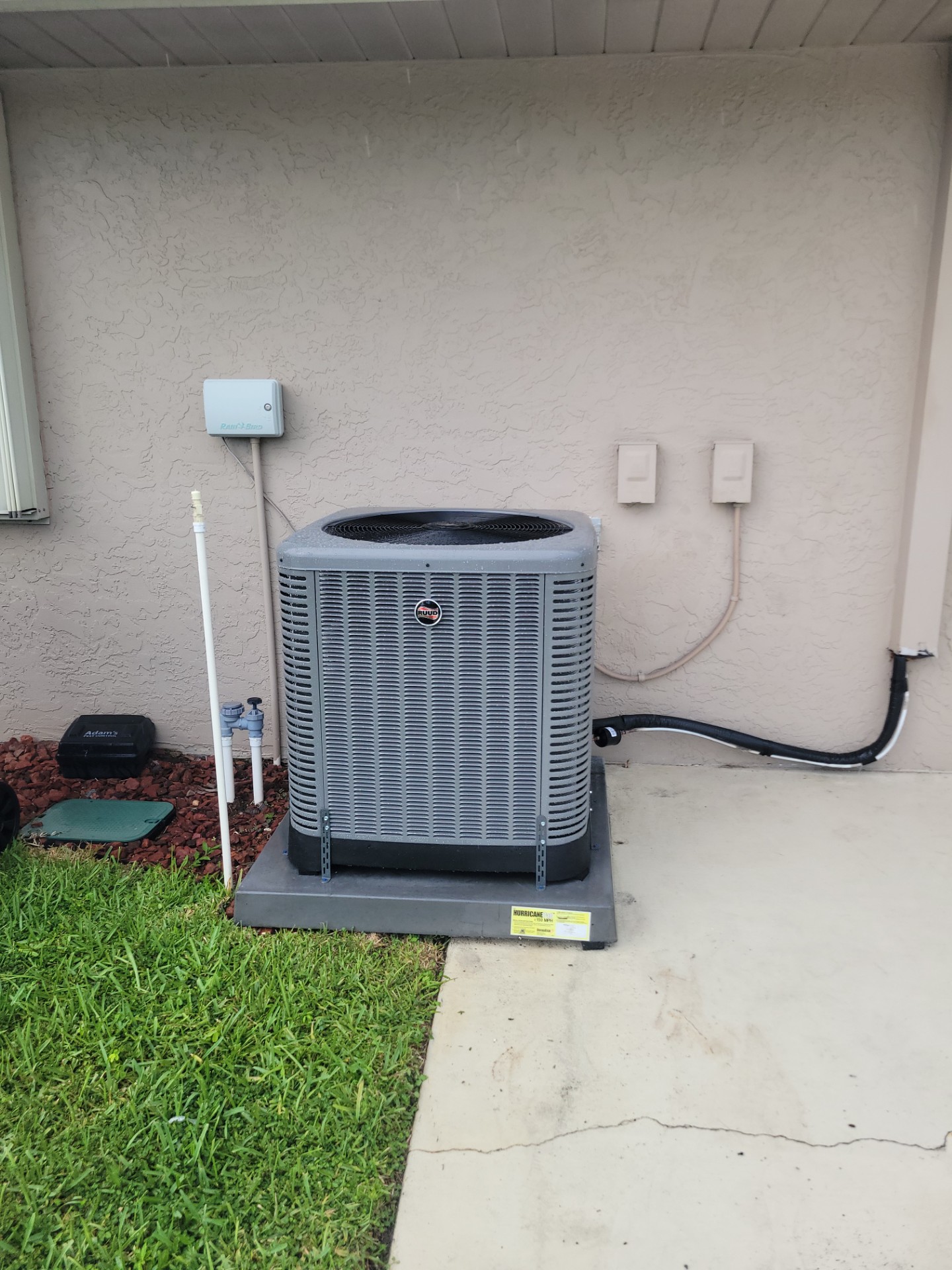

We began by removing the existing equipment and preparing the location for the new system. A new concrete slab was provided for a level base for the outdoor unit. The slab was installed with anchoring straps to keep the condenser secured and reduce movement from wind or vibration. A secure base helps the system sit correctly and reduces stress on the refrigerant lines and electrical connections.

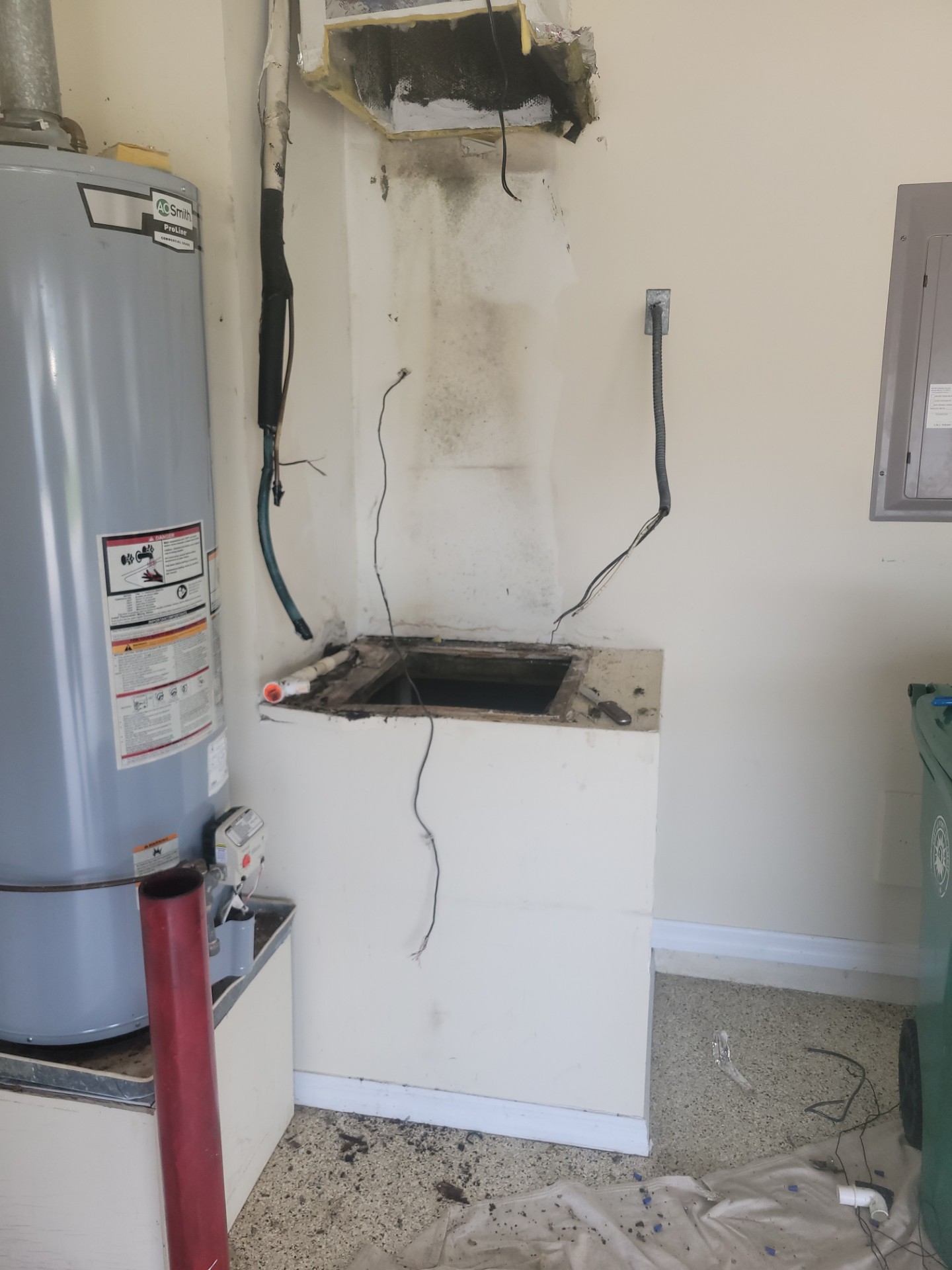

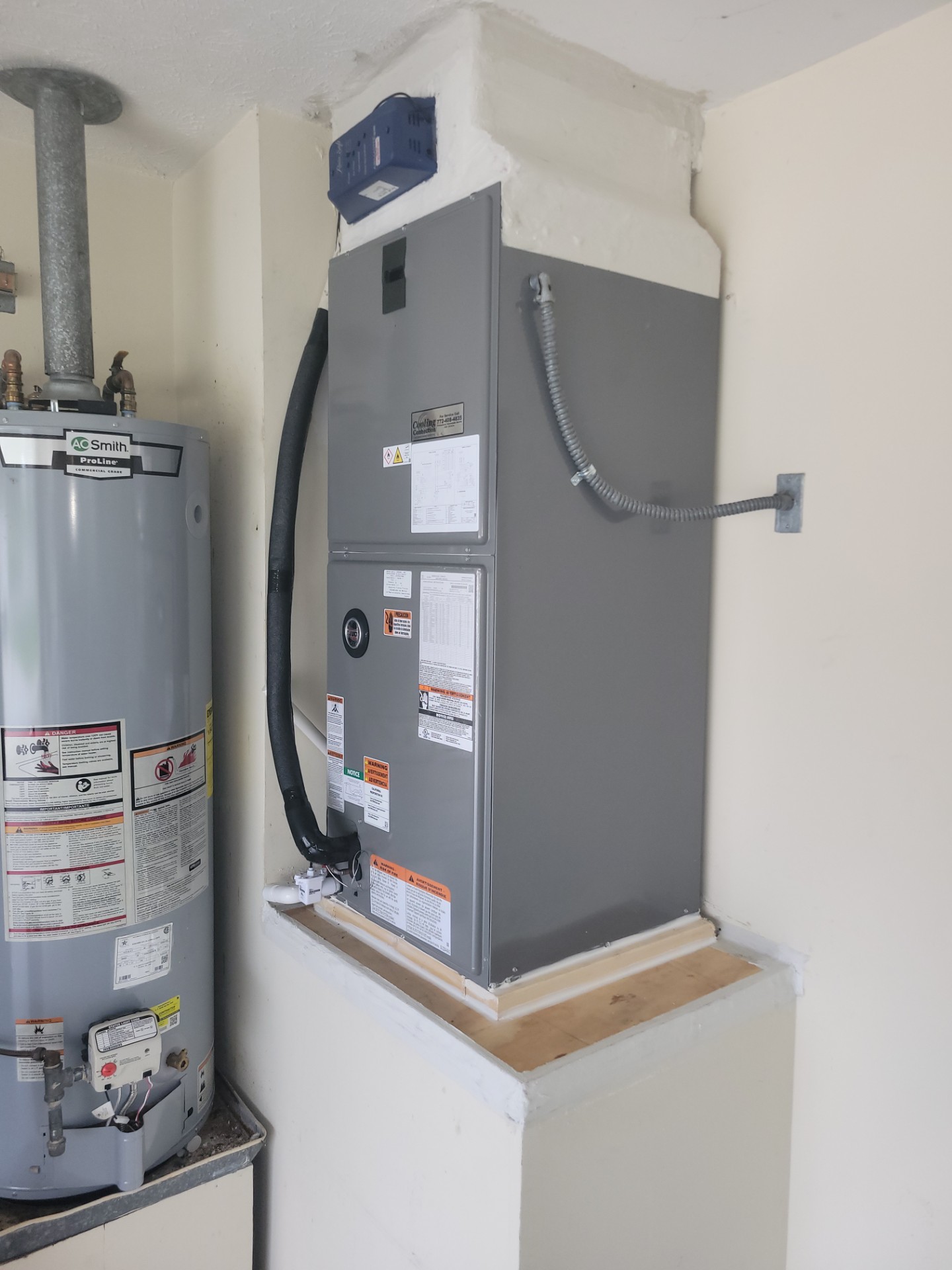

For additional support, we installed a new plywood top and secured it in place. This plywood top was fitted to the required area to give a solid surface where needed and to ensure air handler is  mounted properly. Securing the top prevents shifting and helps maintain the correct alignment of the indoor assembly.

On the refrigerant lines we installed a new filter drier. The filter drier is an inline component that removes moisture and contaminants from the refrigerant, which helps protect the system components from corrosion and blockages. Adding the filter drier during a replacement is a standard step to protect the new Ruud 4 ton system and extend its reliable operation.

We also installed a new float switch to protect against condensate overflow. The float switch monitors the condensate drain, and if a clog or backup causes water to rise, the switch interrupts the system to prevent water damage. Including this safety device provides an extra layer of protection for the home’s interior when the air conditioner is running in Port St. Lucie’s humid conditions.

Throughout the job, Cooling Connection followed standard installation practices for split air conditioner system replacement, paying attention to secure mounting and proper line protection. The combination of a new concrete slab with straps, a secured plywood top, a filter drier on the refrigerant lines, and a float switch addresses both mechanical stability and component protection for the Ruud 4 ton system.

This project provided the homeowner with a freshly installed split air conditioning system that has the physical supports and protective components needed for dependable operation. If you have questions about a similar replacement or want to schedule service in Port St. Lucie, FL, Cooling Connection can assess the job and recommend the right components for your system.

Service provided: Air Conditioner Replacement

Budget: $7000 - $10,000

Location: Port St. Lucie, FL
